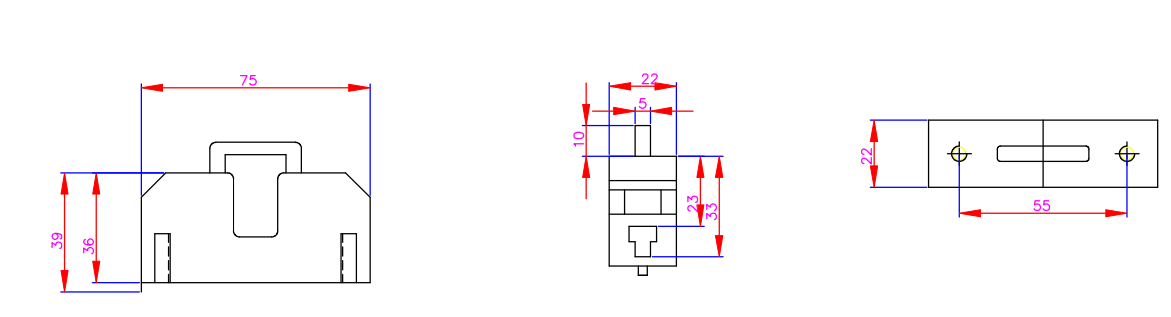

H10MF fuse holder (10X38mm H10H)

贡福电子是专注电路保护元件开发、制造 、供应:保险丝(熔断器)汽车插片保险丝,汽车插片保险丝座,叉栓汽车保险丝,汽车保险丝盒.汽车熔断器,叉栓汽车保险丝座,保险丝座,汽车保险丝座,高压保险丝,直流熔断器,为您产品提供安全可靠的电路保护及周全的解决方案


2.Product introduction

1. Product model: H10MF fuse holder

2. Product application: 10x38 fuse (GFEFUSE® H10H matching fuse)

3. Rated voltage: 1000 VDC

4. Rated current: up to 50A (bolt), 30A (clamp)

5. Dielectric strength: > 1200 V

6. Torque: 2.3 n · m (20 in LBS)

7. Wire range: 14-7 AWG (1.6-8.4 ²)

8. Clip / terminal: tinned copper alloy (M5 screw)

9. Screw and external pressing plate: galvanized steel

10. Base: thermoplastic

11. Working temperature: up to 125 ℃

12. Material Flammability: UL 94 V-0

13.Base: PBT

14.Top cover: PC
