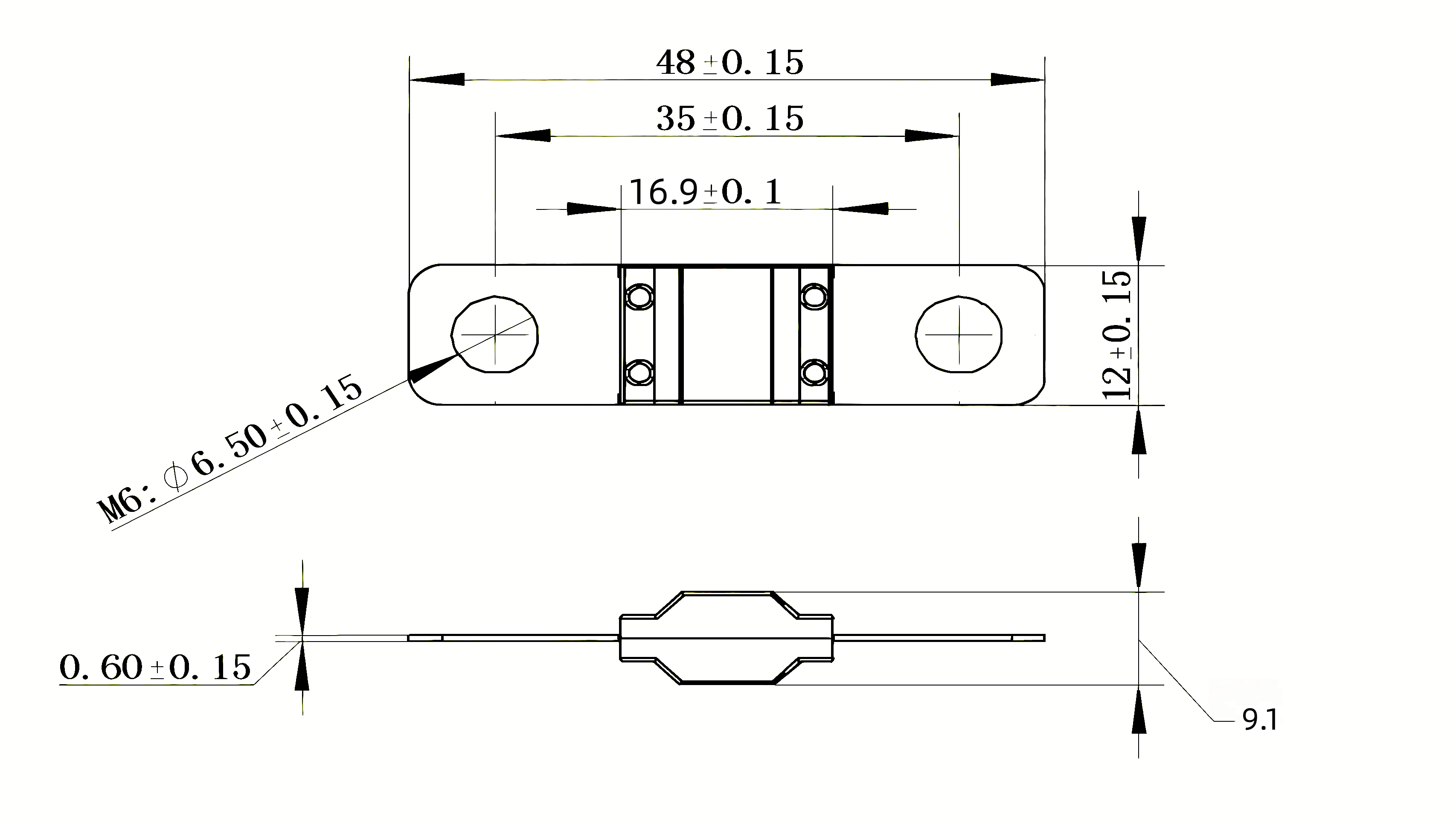

1.Dimensions- mm
2.Product Features
v Mild Hybrid Vehicles
v Vehicle Power Distribution (Electric Vehicles, Electric Motorcycles)
v Material Handling Systems
v All Supercapacitors and Battery Systems
v High Current Line Protection
v Compact Design for High Current Applications
v Rated Voltage: Below 125Vdc
v Plastic Housing (PBT, PPS，Ceramics), Screw-on Terminal Design
v Compliant with: UL248-13 Standard
v Operating Temperature: -40 to 125℃ degrees
3.Electrical Characteristics
|
% of Rating |
Opening Time Min / Max |
|
50A - 350A |
|
|
100 |
4H / ∞ |
|
300 |
~/10S |
4.Product specifications
|
Part Number |
Rated current (A) |
Voltage Rating (v) |
Melting I²t(Pre-arcing) A²s |
Arcing I²t A²s |
Clearing I²t(Total) A²s |
|
ANL-C125050SF35 |
50A |
48V 63V 80V 125V
|
250 |
150 |
400 |
|
ANL-C125060SF35 |
60A |
360 |
216 |
576 |
|
|
ANL-C125080SF35 |
80A |
640 |
384 |
1024 |
|
|
ANL-C125100SF35 |
100A |
1250 |
750 |
2000 |
|
|
ANL-C125150SF35 |
150A |
2230 |
1338 |
3568 |
|
|
ANL-C125200SF35 |
200A |
5400 |
3240 |
8640 |
|
|
ANL-C125250SF35 |
250A |
9600 |
5760 |
15360 |
|
|
ANL-C125300SF35 |
300A |
21800 |
13080 |
34880 |
|
|
ANL-C125350SF35 |
350A |
38500 |
23100 |
61600 |
Note: Different currents and standards can be customized according to customer requirements
Test Condition: 10× rated current, DC 125V, 25℃ ambient temperature, tolerance ±10%
