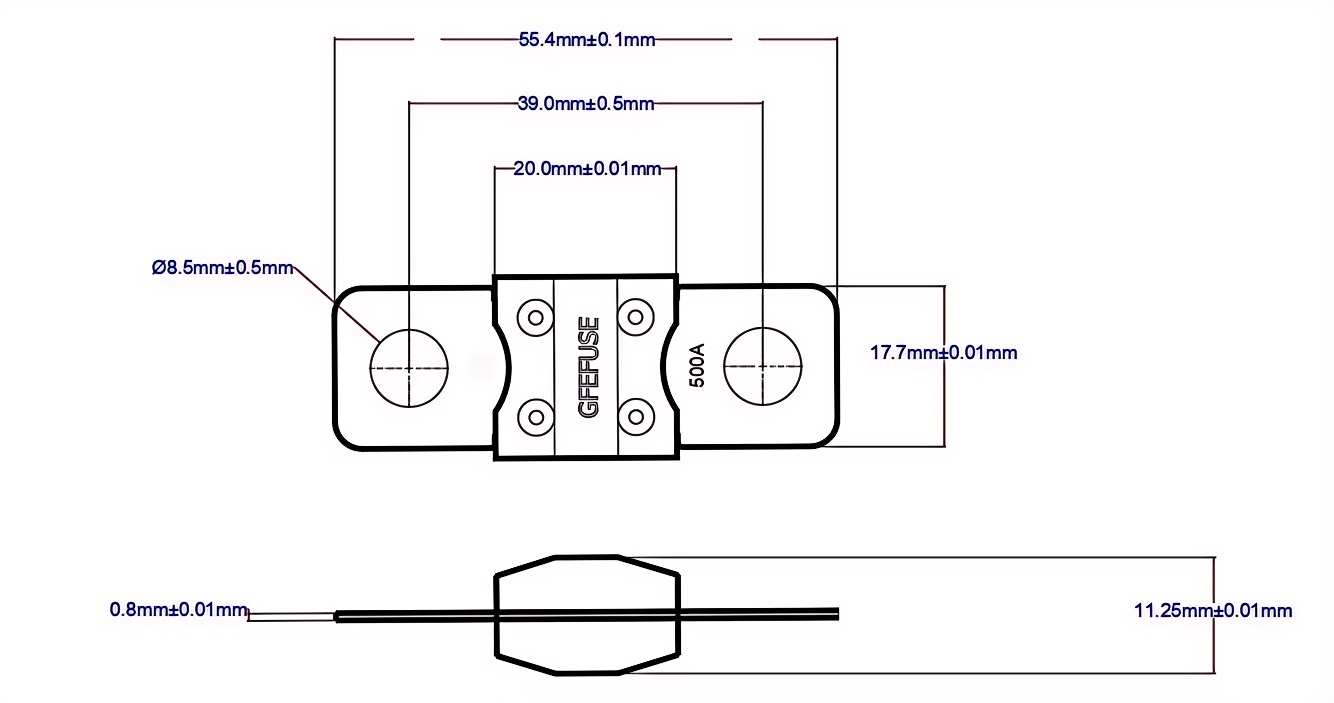

1.Dimensions (mm)
2. Specifications
v Product Features
v Compact design, suitable for high current applications.
v Rated DC voltage of 150 volts
v Segmentation capability: 150Vdc 20KA maximum, time constant 2.5-3ms
v High temperature resistant ceramic shell
v The product complies with UL248-13 GB/T13539 standard
v High current wire protection
v Vehicle distribution (electric motorcycles, new energy trams, charging supporting systems)
v Material processing system
v Unmanned aerial vehicle power distribution protection
v All supercapacitor and battery systems (energy storage protection system)
v Operating temperature -40 ° C to+125 ° C
3.Time-Current Characteristics
|
% of Rating |
Opening Time Min / Max |
|
100A - 800A |
|
|
100 |
4H / ∞ |
|
300 |
~/10S |
4.Product specifications
|
Part Number |
Rated current (A) |
Voltage Rating(v) |
Pre-arcing I²t |
Arcing I²t(Typ) |
Total I²t |
|
ANL-B150100SF39 |
100 |
150Vdc |
10000 |
3000 |
13000 |
|
ANL-B150150SF39 |
150 |
22500 |
6750 |
29250 |
|
|
ANL-B150200SF39 |
200 |
40000 |
12000 |
52000 |
|
|
ANL-B150250SF39 |
250 |
62500 |
18750 |
81250 |
|
|
ANL-B150300SF39 |
300 |
92500 |
27750 |
120250 |
|
|
ANL-B150350SF39 |
350 |
122500 |
36750 |
159250 |
|
|
ANL-B150400SF39 |
400 |
192000 |
48000 |
240000 |
|
|
ANL-B150450SF39 |
450 |
233000 |
69900 |
302900 |
|
|
ANL-B150500SF39 |
500 |
276000 |
75000 |
351000 |
|
|
ANL-B150550SF39 |
550 |
285500 |
91700 |
377200 |
|
|
ANL-B150600SF39 |
600 |
295000 |
108000 |
403000 |
|
|
ANL-B150650SF39 |
650 |
406500 |
127000 |
533500 |
|
|
ANL-B150700SF39 |
700 |
518000 |
147000 |
665000 |
|
|
ANL-B150750SF39 |
750 |
610000 |
174000 |
784000 |
|
|
ANL-B150800SF39 |
800 |
85V |
640000 |
192000 |
832000 |
Note: Different currents can be customized according to different needs
